连接池通过缓存和重用物理连接,提高应用程序的性能与可扩展性。本章介绍 JDBC API 对连接池的支持。

11.1 ConnectionPoolDataSource 和 PooledConnection

ConnectionPoolDataSource 接口通常由 JDBC 驱动程序实现,应用服务器通过该接口获取 PooledConnection 对象。

PooledConnection 表示与数据源之间的物理连接。应用程序不直接使用它,而是使用从它获取的逻辑 Connection 对象。

1
2
3
4
5
// Create a PooledConnection
PooledConnection pc = cpds.getPooledConnection("user", "password");

// Get a logical Connection
Connection con = pc.getConnection();

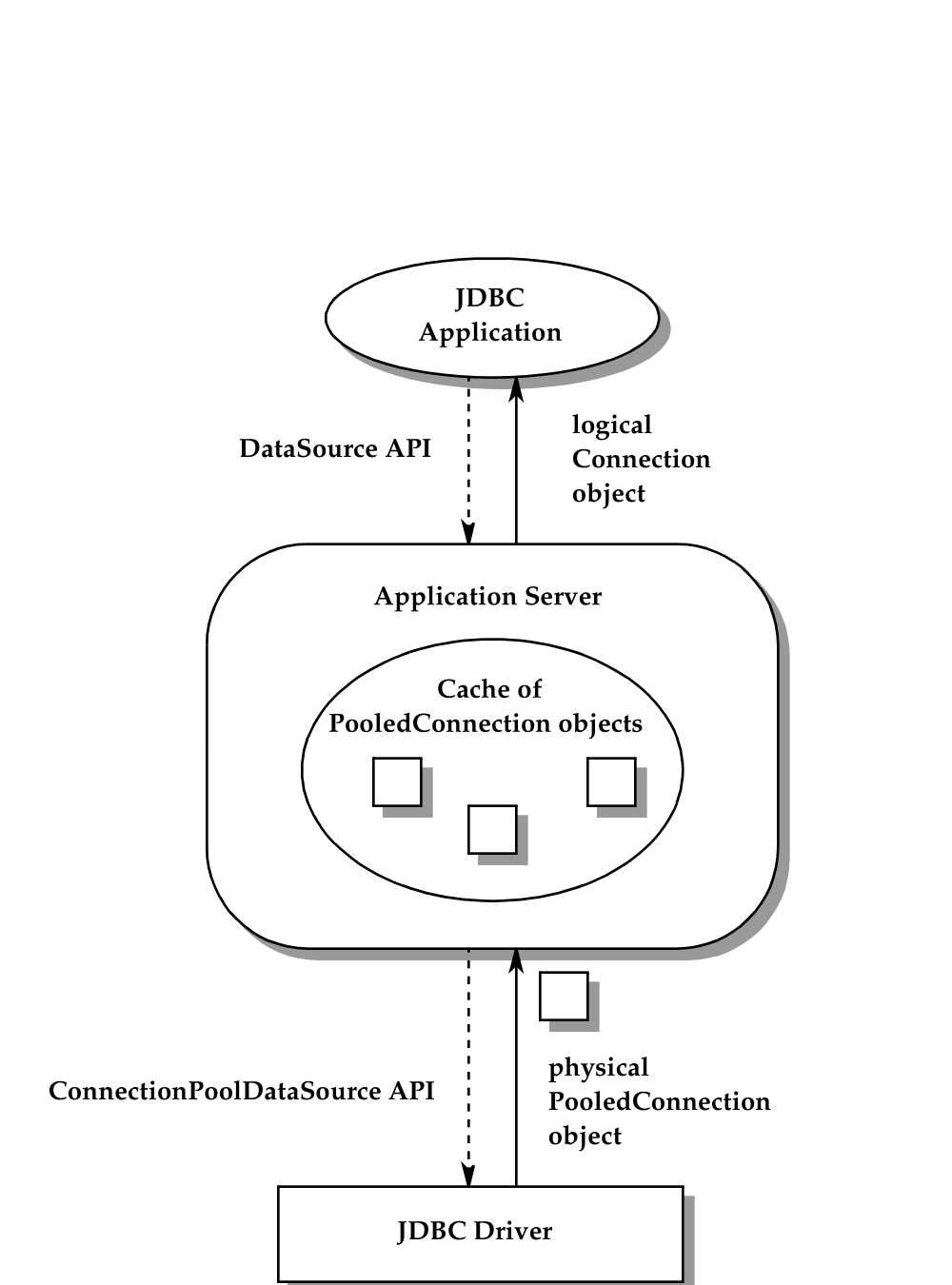

图 11-1 展示了连接池的整体结构。

图 11-1 连接池

图 11-1 连接池

赞助商

11.2 连接事件

当应用程序调用 Connection.close 时,逻辑连接会被关闭,但底层物理连接不会被真正关闭,而是返回连接池以供复用。为了将这些状态变化通知连接池管理器,JDBC 使用了 JavaBeans 风格的事件通知机制。

当连接事件发生时,例如逻辑连接被关闭或物理连接发生严重错误时,PooledConnection 会通知已注册的 ConnectionEventListener。

1
2
// Add a connection event listener
pc.addConnectionEventListener(new MyConnectionEventListener());

11.3 三层环境中的连接池

在三层环境中,连接池通常由中间层服务器管理。应用服务器向客户端提供实现了 DataSource 的对象,应用程序无需了解底层的连接池机制。

11.4 DataSource 实现与连接池

支持连接池的 DataSource 实现会在内部管理一组物理连接。当应用程序调用 getConnection 时,它拿到的是逻辑连接,而不是直接持有池中的物理连接对象。

11.5 部署

ConnectionPoolDataSource 对象通常由应用服务器进行配置与部署。客户端应用程序通常只需通过 JNDI 或其他命名服务查找相应的 DataSource,无需直接了解底层连接池的实现。

11.6 池化连接的语句重用

JDBC API 还支持在池化连接之上复用语句对象,尤其是 PreparedStatement。这一机制可以减少重复创建预编译语句的开销。

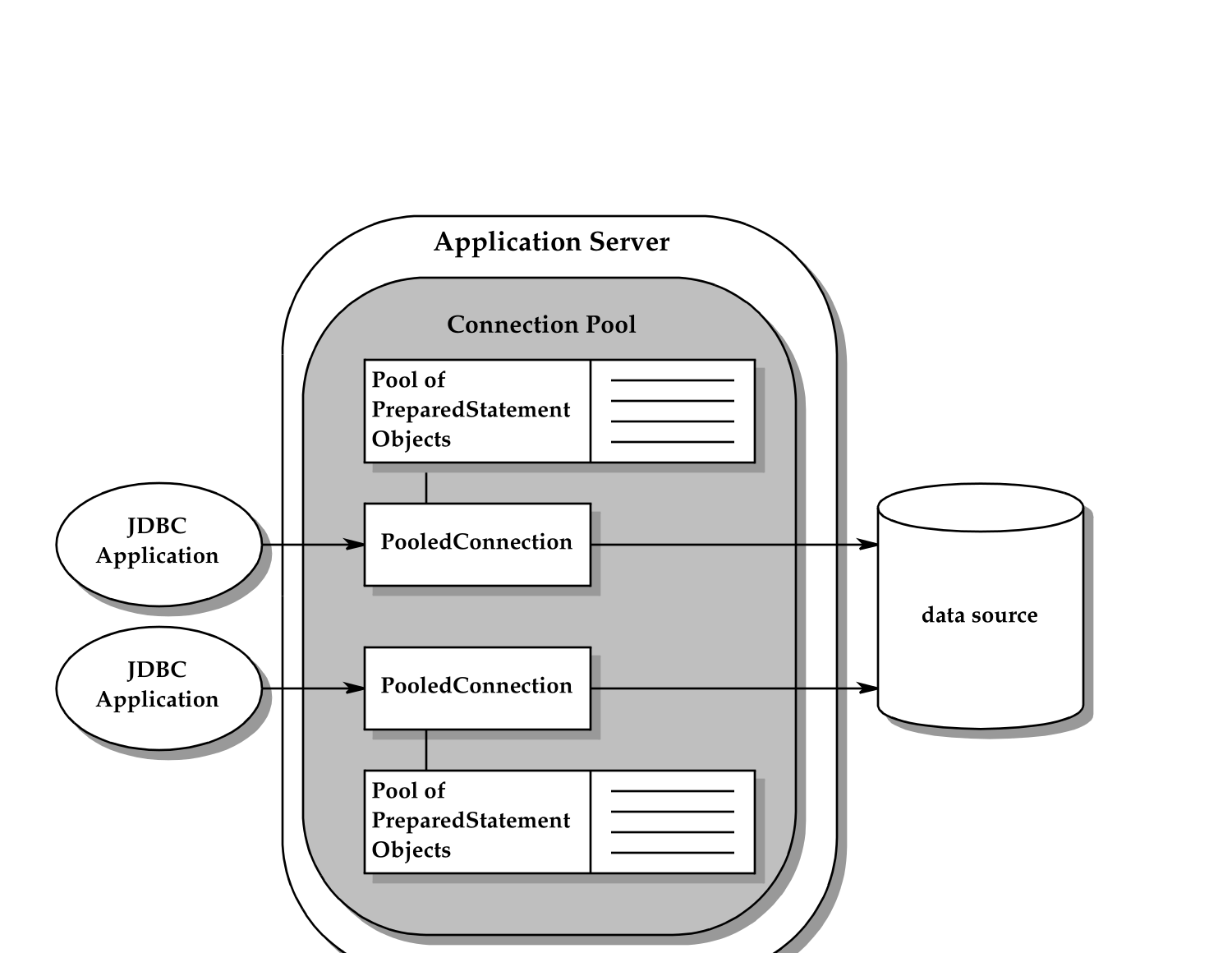

图 11-2 展示了池化连接重用 PreparedStatement 的逻辑视图。

图 11-2 池化连接重用预处理语句的逻辑视图

图 11-2 池化连接重用预编译语句的逻辑视图

11.6.1 使用池化语句

1
2
3
4
5
6
7
8
9
10
11
12
// Get a pooled connection
PooledConnection pc = cpds.getPooledConnection();
Connection con = pc.getConnection();

// Prepare a statement
PreparedStatement pstmt = con.prepareStatement("SELECT * FROM employees");

// Use the statement
ResultSet rs = pstmt.executeQuery();

// Close the logical connection (statement may be reused)
con.close();

应用程序可以通过 DatabaseMetaData.supportsStatementPooling 判断数据源是否支持语句池化。如果返回值为 true,应用程序就可以在性能敏感场景中更有信心地使用 PreparedStatement。

11.6.2 关闭池化语句

应用程序使用与普通语句相同的方式关闭池化语句,通常无需关心语句是否参与池化。关闭逻辑语句后,底层物理语句可能会返回语句池,供后续重用。

11.7 语句事件

StatementEvent 表示与预编译语句池相关的事件。语句关闭或因错误而失效时,驱动程序可以触发相应事件,由 StatementEventListener 接收通知。

11.8 ConnectionPoolDataSource 属性

ConnectionPoolDataSource 接口定义了以下标准属性:

属性名类型描述
maxStatementsint可以池化的最大语句数
initialPoolSizeint池的初始大小
minPoolSizeint池的最小大小
maxPoolSizeint池的最大大小
maxIdleTimeint空闲连接在被丢弃前允许保持空闲的最大秒数
propertyCycleint属性检查周期,以秒为单位
